Installing a diesel generator is a significant investment, and it’s essential to do it correctly to ensure reliable backup power for your business or home. The installation process can seem daunting, especially if you’re not familiar with electrical systems and generator technology. However, with proper planning and execution, you can successfully install a diesel generator that will provide uninterrupted power supply during an electrical outage.

In this blog post, we’ll We’ll also discuss, Erection of a DGset and the common challenges that can arise during the installation process and provide tips on how to overcome them, as well as important safety considerations to keep in mind.

Whether you’re a business owner or a homeowner, this post will provide you with valuable insights into how to carry out the installation of a diesel generator and ensure that your backup power supply is up and running when you need it most.

Table of Contents

Installation of Diesel Generator

Installation of DG

Installation Activities

  1. Unloading of DG Tools, Spare & Lube Oil Cooler
  2. Positioning, Levelling & grouting of the DG base plate
  3. Unloading of DG sets & placing them on the DG Foundation.
  4. Erection of the Lube Oil Cooler
  5. Unloading & Erection of the Diesel driven & motor-driven compressors
  6. Unloading & Erection of the Air Receiver
  7. Unloading & Erection of Fuel Skid
  8. Unloading & Erection of the prefabricated 28.5 Mtrs Chimney structure & 30.0 Mtrs semi-fabricated Chimney stag
  9. Unloading & Erection of Radiators
  10. Unloading & Erection of ventilation unit.
  11. Unloading & Erection of Exhaust Silencer
  12. Unloading & Erection of Fuel Day Tank
  13. Unloading & Erection of Expansion Tank
  14. Unloading & Erection of waste oil Tank & Pump
  15. Unloading & Erection of VCB Panel
  16. Unloading & Erection of MCC Panel
  17. Unloading & Erection of EDG control & Synchronizing Panel
  18. Unloading & Erection of Battery Charger panel
  19. Unloading & Erection of Cable Tray
  20. Unloading & Laying of Power & Control Cable
  21. Carry out Unloading and Storage of Pipe, Pipe Fitting & Insulation Material, etc.
  22. Unloading and Storage of Exhaust Duct
  23. DG set positioning, levelling, and final securing.
  24. Erection of Exhaust Duct
  25. Fabrication, Hydro testing 1.5 Times of Design pressure, Pickling & Erection of Cooling Water Pipe Line
  26. Fabrication, Hydro testing 1.5 Times of Design pressure, Pickling & Erection of Fuel Oil Pipe Line
  27. Fabrication, Hydro testing 1.5 Times of Design pressure, Pickling & Erection of Lube Oil Pipe Line
  28. Fabrication, Hydro testing 1.5 Times of Design pressure, Pickling & Erection of Comp. Air Pipe Line
  29. Acceptance criterion: Hold the pressure for 10 minutes duration, and there should not be visible leaks externally.
  30. Install the a) Lightening arrestor b) Aviation Lamp
  31. Power & Control Cables to be termination is to be completed.
  32. Maintain the sump oil level.
  33.  Keep the expansion tank level to the working level with removal of vapours.
  34. HSD fill up in the Day tank & release the air from all vent points
  35. Maintain the required air pressure in the Air Receiver
  36. Start the pre-lubrication pump & check the oil flow at all Engine moving parts.
  37. Check the Cold & Hot crank wave deflection.
  38. Commissioning and test protocol for DG set and associated Auxiliaries.

Unloading and storage procedure

Purpose

The purpose of this procedure is to address all quality-related activities relevant to the material handling procedure for DG set on arrival at the Site

Unloading Activities

Follow the Following activities, the quality aspect on the arrival of DG set at Site.

  1. Placing of the DG set on foundation along with Vibration isolators
  2. Levelling of DG set as per Manufacturer’s recommendations
  3.  Inspection of DG set externally on arrival at Site, before unloading from trailer Unloading of the DG sets from the trailer
  4.    Shifting and placing of the DG set on the foundation
General Specifications
  1. DG Set Capacity
  2. Engine Type-
  3. Major Dimensions
  • Approximate Height
  • Approximate length
  • Approximate width
  • Approximate weight

Sequence of activity

  • Verification of levelling of concrete foundation.’
  • Unloading and shifting the DG set to the foundation

Placing the DG set over the foundation

Major material handling equipment

  1. Mobile Crane
  2. Lifting arrangements provided by the Manufacturer
  3. Chain Pulley Blocks
  4. Steel wire rope sling
  5. Wooden sleepers
  6. Steel rails
  7. Hydraulic jacks
  8. Pipe roller

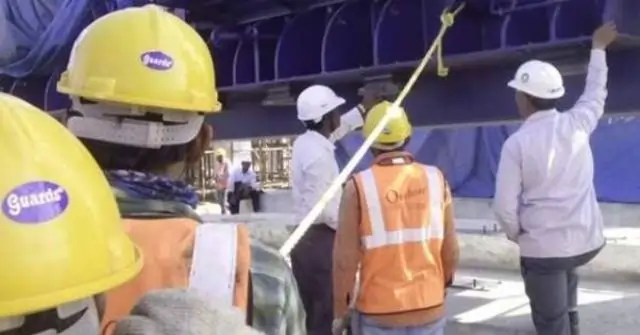

Unloading Procedure

Inspection of material

Inspect the DG set on arrival at the Site for damage/ shortage that occurred during transit. If any damage is noticed, notify the transport agency, Owner of Equipment, and the insurance company. Get the damage endorsed by authorised surveyor/agency

Unloading of DG set at Site ( Installation of Diesel Generator )
  1. Preparation of Ground: – Prepare the ground in the loading area for the movement of the Crane. Compact the jack base area. Provide sufficient wooden /steel plates for the even load distribution.
  2. Take the trailer carrying the DG set near the Point of unloading the DG house and position suitably.
  3. Place the wedges under the wheel of the truck for arresting any movement during unloading.
  4. Place the Crane suitably by the side of the trailer.

The boom is

  • Kept around 75 degrees angle, and the DG set is lifted with wire rope slings secured on the DG set as per the maker’s direction on one side and over the crane hooks another side.
  • Unloading and shifting ground for the DG set should be properly Level off. Mark the approach for the easy movement of Crane and trailer after levelling the ground properly.
  • Tighten the Wire slings to observe any unbalance on slings and to be adjusted if necessary.
  • Lift the DG set at about 1-2 inches above from trailer to observe any unbalance of the total unit, and lower back for any adjustments to be carried out for (positioning of the Crane, tools and wire sling, packing at the jack base, etc.)
  • Move off the trailer by withdrawing the wedges once DG set is lifted about 6 inches from the trailer base.
  • Place the DG set on the ground slowly as soon as the trailer is cleared from the spot.
  • Lift the DG set and arrange the level and place the wooden sleepers over the ground. Place the DG set over the wooden sleepers.
  • Raise the DG set to the required level with the help of the Crane and add more wooden sleepers for leveling in stages.
  •  Finally, insert and place the suitable rollers for shifting the DG set near the engine foundation.
  • Slowly lift the engine and slowly placed it over the leveled base bar, similarly as per the explanation in the unloading procedure. (Where ever necessary, Crane can be used for raising the DG set for suitably placing the rails and rollers for hauling the DG set to a foundation). Hauling of the DG set shall be minimized as far as possible while the Crane services shall be used to the maximum extend.

Leveling The Foundation Base Frame ( Installation of Diesel Generator )

Complete this job before lowering the DG set on the foundation base frame as per the following method.

  1. Thoroughly clean and wash the engine foundation.
  2. Mark the centreline of the foundation as per the drawing.
  3. Verify the concrete foundation level with the help of the cup level.
  4. Bring the foundation level equivalent to equal level and height by adjustment with shims
  5. Place the DG set suitably above the foundation and leveled platform with wooden slippers.
  6. Lower the DG set appropriately onto the foundation with the help of jacks for final positioning.

Storage Procedure

The following procedure is to be adopted for the storage of the DG set.

  1. Whether packed in a wooden box or packed in open containers with tarpaulin, the Generating set must be placed under the roof, protected against rain and dust.
  2. The packing must always be covered with a canvas.
  3. For packing in an open container/tarpaulin, the maximum storage time will be four months
  4. For packing in a wooden box, the storage time will be eight months.

If the Generating set is not installed in the period mentioned above; the following preservation activities have to be carried out to maintain the DG set in good condition.

Engine

  1. Remove tarpaulin and open the wooden box.
  2. Remove covers of the crankcase, camshaft casing, and valve gear deives.
  3. Pump the lube—oil system through with protective oil, “Mobilarma- 524” or similar.
  4. After opening the indicator valves, pour protective oil to each cylinder (approx. 1/3 litre of. “Mobilarma- 524”) or similar.
  5. Turn the crankshaft by 2-3 revolutions and check that the stop position differs from the start position.
  6. Check the top of the cylinder heads and coat with “Mobilplex-44” or similar; if necessary, remount the cover.
  7. Remount covers in the crankcase and the camshaft casing. Remount all intermediate cover.
  8. Check the exterior surfaces and re-establish the protection, if necessary, with “Mobilarma-247” or similar.
  9. Check the painting and re-paint if necessary.
  10. Remove the cover at the turbocharger gas outlet and turn the rotor of the turbocharger by strong pushes. Replace the cover at the gas outlet.
  11. Re-establish the original packing and cover with tarpaulin.

 For alternator

1.    Preserve the machine with de-moisturising chemicals. When the alternator is not in operation, the heating elements must be connected and in proper function.

2.    Clean all the parts properly and apply the preservative. Make sure that the layer is proper. Store all the supplied loose parts in the storing place with proper markings and tags. Display the group codes on the racks.

3.    Should inspect the stored item frequently. And also, necessary facilities for the owner/ Engineer are made to carry out such inspection when considered necessary. The suggestions of the Owner/ Engineer shall be implemented, and a periodic report has to be generated.

4.    Keep the engine safe from vibration.

Documentation

  1. Stores receipt
  2. Manufacturers instruction manual
  3. Packing slip
  4.  Drawings
  5. Test certificate of material handling tools
  6. Maintenance reports
  7. Work permit for unloading

Other arrangements

  1. Safety brief before the commencement of work.
  2. PPE and safety gears as required. (the persons engaged in unloading shall wear PPE).
  3. Safe work method statement to be submitted to Engineer before the commencement of work

 Safety checks

  1. Ground levelling shall be checked before unloading operation
  2. Prepare the access road to the Point of unloading at the Site.
  3. Prepare the area suitably for resting the  crane jack on the ground..
  4. Inspect the crane and wire ropes, brake operation of jack, etc.
  5. Secure the lifting tool over the engine lifting point.
  6. Check the condition of the lifting tools/wire strap.
  7. Put a board at the site displaying that “Unauthorized persons are not permitted in the vicinity of the rigging and unloading area”.
  8. Suitably cordoned off the area near the unloading point.

Signalling

Decided one person for signalling and coordinate with the crane operator.

Work permit

Obtain the work permit from the Site Head.

Important checks

  1. Make a safe work method statement
  2. Identify the hazards associated with each activity.

Erection ( Installation of Diesel Generator )

Important Activities for the DG set Erection

  1. Activities (Pre-erection )on the DG set foundation and grouting of the DG set base plate
  2. Positioning, mounting, and leveling of the DG set.
  3. Adjustment of elastic mounting for Generating Set.

Pre-erection activities on the DG set foundation and grouting of the DG set base plate

Require

Important Material and tools before the pre-erection activities

  1. Latest approved drawings.
  2. All the erection material like base plate, foundation bolts jacking bolts.
  3. Foundation marking and leveling equipment.

Carry out the following activities for the pre-erection of the DG set on foundation

  1. Check the elevation of the foundation is as per the drawing.
  2. Clean the foundation surface and place the base plate as per drawing and maintain the specified dimensions.
  3. Mark the coordinates ( x-x, y-y) to maintain the center distance between two base plates as per the specified dimensions in the approved drawing.
  4. Maintain the elevation of all base plates as per the approved drawing.
  5. Mark the foundation for drilling the hole for foundation bolts.
  6. Remove all the base plates after correct marking prior to drilling.
  7. Drill the foundation with the dimensions specified in the drawing.
  8. Ensure the base plate is neat and clean, clean any rust particles.
  9. Clean the foundation surface and replace the base plates maintaining the dimensions as per the drawing.
  10. Carry out the leveling of the base plates with the help of leveling screws.
  11. Mount all the foundation bolts tighten up to specified torque.
  12. Prepare the grouting chemical and fill in the pockets.
  13. The base plate should be above the foundation as per the specified dimensions.
  14. Wait for the grouting chemical to get hard.
  15. Loosen all the adjusting screws upon curing.
  16. Apply the final specified torque on the foundation bolts.

Guide lines for proper Levelling, Positioning and mounting of the DG set.

DG set placing on position Procedure for the Erection and commissioning of a Diesel Generator

  1. Keep the Filling Piece, Elastic Mounting, shims, Nut, and bolts ready at the site
  2. Clean the filling piece and elastic mountings from both sides.
  3. Keep the DG lifting tool, wire ropes, and crane ready in all respects
  4. Ensure the crane location at an approachable distance from the foundation and DG set or follow the manual procedure for the placement of DG set at the foundation
  5. Ensure the cleanliness of the base frame bottom at the location of elastic mounting.
  6. Mount the elastic mounting and filling piece at the bottom of the base frame.
  7. Mark the exact position of the base plate for the exact location of the elastic mounting.
  8. Lower the DG set till it rests completely on the base plate with the centerline matching.
  9. Ensure the elastic mounting dimensions as per the approved drawing.
  10. Remove the engine hoisting tool
  11. Follow the next procedure only after a waiting period of 48 hours as per the OEM recommendations.

ADJUSTMENT OF ELASTIC MOUNTINGS FOR GENERATING SET

Installation of Diesel Generator for the elastic height measurement.

  1. Keep the height measuring tool Steel scale, Vernier calliper, Inside Micrometer ( 100 to 150mm) readily available.
  2. After the settlement period of 48 hours, measure the height of the elements.

The variation in the mountings should not exceed ± 1mm and should be as near as possible

Example

 Erection and commissioning of a Diesel  Generator
Installation of Diesel Generator|The Best Procedure in 22-23 47

  1. Carry out the following activities in case the measured height exceed ± 1mm
  2. Raise the DG set with the help of a lifting device or hydraulic jack and add the shims wherever height is more than the others in comparison.
  3. Put the Jack down the engine and repeat the readings after 48 hours.
  4. Procedure to be repeated time and again till the specified limit has been achieved.
  5. Initially adjust the mounting with the largest deviation (from the average value) by adding the steel shims.

 Erection and commissioning of a Diesel  Generator-Elastic mounting
Installation of Diesel Generator|The Best Procedure in 22-23 48

  1. Enter all the elastic mounting height measurement for the review by OEM.
  2. Carry out the further welding of all the required parts after the receipt of approval.

PRE- COMMISSIONING & COMMISSIONING OF DG SETS

PLANNING BEFORE COMMISSIONING  (Installation of Diesel Generator)

 Mechanical– Erection and commissioning of a Diesel Generator

Auxiliaries Systems

  • Exhaust
    • Air intake
    • Cooling water
    • Lube oil
    • Air (start / control)

Tanks Fuel & Water and associated pipelines



Electrical / C & I-Installation of Diesel Generator

. DC System (24 V & 110 V)

2. Electrical

  • DGCP
  • Synchronization panel
  • The equipment for receiving the Power (MV
  • Switchboard, PCC, and MCC) should be ready to accept the power.

3. Completion of Engine & electrical safety checks in stop & running condition

4. Fire detection and monitoring

5. Civil and structural works associated with DG sets, auxiliaries, and systems mentioned above

6. Safety – fire fighting systems and equipment

Post-Erection, Pre-commissioning, Commissioning checks & procedure

General (Installation of Diesel Generator)

  1. Availability of all the relevant Datasheets of the DG sets at the site,   including P&IDs and safety appliances, and all these documents are to be inspected by respective engineers and need to be satisfied before starting work. The commissioning team is acquainted with the details of the system.
  2. Inspection and arrangement of all the tools and tackles before starting work.
  3. All people working at the DG set should wear PPE before starting work. (Should have ear defenders/earplugs for use when sets are started up and in operation)
  4. The area of work should be cleaned from all obstructions and examined for easy movement and passage.
  5. Depute the commissioning team assigned with an area of responsibility during pre-commissioning and commissioning Time to attend to various equipment.
  6.  Availability of Testbed record of Engine and Alternator ( FAT- factory acceptance test report)

Tools and tackles -Installation of Diesel Generator

  1. A set of spanners & Hand tools.
  2. Sufficient trays and containers for collecting drip and leak-off from joints, if any.
  3. Communication arrangement from one point to other. (walkie – talkies)

A set of electrical measuring and inspection tools (Megger, Voltmeter, Ammeter, Tong-tester, etc.)

  1. Equipment for inspection and testing of C & I component including
  2. Pressure & temperature calibration tool.
  3. Tool for deflection measurement, torch & mirror.
  4. Vernier caliper, Micrometer, Feeler gauge for tappet.
  5. Peak pressure gauge (P-Max)
  6. Contact lass thermometer (infrared)
  7. Dial gauge with magnetic stand

Personnel attending the procedures (Installation of Diesel Generator)

  • Commissioning Engineer
  • Quality control engineer
  • Mechanical Engineer
  • Instrument Engineer
  • Electrical Engineer
  • Mechanical & Electrical Technicians

Post Installation checks (Installation of Diesel Generator)

  1. Ensure that the DG set is correctly installed on the concrete foundation block and ready in all respect.Approved Drawings and all mechanical installation work are complete before pre-commissioning to be kept ready for reference.
  2. Ensure that all the piping/ducting (Fuel, oil, water HT&LT, start air, intake air, exhaust gas) of the DG sets are connected to the machine’s respective connection points expansion joints/ bellows are applied as per the norms. Pipes are well supported and secured. The silencer is installed and well supported. Silencer drain valves are fitted.
  3. All the isolation valves, fittings that have been provided are inspected and free to open and close completely
  4. Exhaust ducting has been installed, supported, and secured well, and connected to the main chimney.
  5. DG set has been fitted with all the necessary indicating (pressure & temperature gauges and pressure and temperature switches)
  6. Ensure no other work inside the DG Hall is being carried out during the pre-commissioning checks and commissioning work.
  7. Inspect all the platform, ladders, and access points to DG set and auxiliaries for proper securing from the point of access to inspection and logging.
  8. Clean the DG set engine and alternator accessible for pre-commissioning and commissioning checks.
  9. Check and ensure that all the coupling guards, belt guards, and barriers against moving parts are fitted and secured well.
  10. Check clean and inspect and close HT and LT water expansion tank.
  11. Charge the Water system
  12. Check, clean, inspect, and closes the Engine sump for charging lubricating oil.
  13.  All consumables such as water, lube oil, diesel, service air, and lubricants, etc., are to be provided by the customer at the site.
  14. A sufficient amount of Lubricating oil is available for charging into the engine oil sump. (Engine oil sump shall be charged first Time directly from the drums)
  15. Check that all the MV LV & Control cables on the alternator have been laid and cables have been terminated according to the cable schedule.

Pre-commissioning checks (Installation of Diesel Generator)

(A) Check and ensure that the following systems are ready and are available for service as and when required

  1. Make the availability of the compressed air to the system.
  2. DM/ soft water is available and connected to the plant and DG sets system.
  3. Engine start air and instrument air is available and is connected to the system.
  4. HT & LT radiators are operational and connected to the respective system and charged with water, and ready for use.
  5. Fire fighting equipment is available.
  6. Fuel system (Diesel oil) is prepared, ready, and fuel available at engine inlet after priming.
  7. Charge engine sump with manufacturers’ recommended lubricating oil to an acceptable level.
  8.  Check and fill oil in governor sump to the mark/ level.

(B) Ensure that the following auxiliaries and equipment are made operational and be available for a startup as and when required for the Erection and commissioning of a Diesel Generator

) Fuel booster is operational.

(2) 24/110 V DC. Supply is made available.

(3) Engine control Panel is made operational.

(4) Pre-lube oil pump is operational.

(C) After the DG set is fully loaded with mass after fitting all mountings, the Anti-vibration pad (elastic mounting) measurement may be taken and recorded. Final adjustment, if any, may be carried out. Record the final readings.

(D) Open alternator front cover and check rotor-stator air gap record the measurement. Check and tighten rotating rectifier connections and put the cover back into position.

E. Check engine crankshaft deflection at cold condition, make adjustments if necessary, and bring the last throw to an acceptable Limit if the deviation is noticed. The record measurement of all cranks throws. Refer to the instruction manual for procedures. (The job shall be carried out by OEM Engineers and recorded at all stages.)

F. Check and prepare the following electrical system.

) Check and put 110/24 V DC system is operational.

(2) All the relevant MV VCB’s are inspected and in-service position.

(3) Megger MV cable from alternator end with the help of 5 VK Megger and record readings. (Discharge cable on completion)

(4) Measure insulation value of alternator windings and record. Ensure AVR connections are disconnected before meggaring.

(5) Inspect all the insulator conditions in the alternator cable terminal box for good condition.

(6) Connect the cable to the respective winding terminal and re-tighten properly.

(7) Check that Engine moving parts have no obstruction and the area around the DG set is clear and accessible for easy movement of people.

(8) Check inlet & exhaust valve clearance and adjust to the permitted value.

Commissioning checks (Installation of Diesel Generator)

Perform all the procedures mentioned in the procedure, and commission the engine with the listed below instructions.

  1. Carry out the heating of engine cooling system to 50 deg. C

Carry out the heating of lube oil 40 deg. C.

(2) Warm-up engine lube oil system and sump oil to about 40 deg. C.

(3) Start engine priming pump and lubricate Engine and ensure that all parts are supplied with sufficient oil. Turn engine in the direction of rotation few revolutions with engine indicator cock in open position on all cylinders.

(4) Put radiator system into operation

(5) Put compressed air and ventilation system into operation

(6) Put diesel oil system into operation, vent air from the fuel system, and ensure that there is at least 2.5 kg /sqcm pressure in the system.

(7) Prepare the Engine for barring on Air motor. Turn the Engine with oil priming on at least by two complete revolutions and ensure no abnormalities, and the Engine is free to rotate. Check that oil supply reaches all the observable points, including rocker arm.

(8) Open the crankcase door on one side and observe that oil flow is normal following oil drain from piston cooling.

(9) Close the crankcase door and secure the Engine (fuel system and governor locked to stop fuel position) for blow through by start air system.

(10) Turn the Engine (with oil priming on) by start air and blow through the system once or twice.

(11) Recharge compressed air system and built upstart air pressure to about 30KG/cm2.

12)Close all indicator valves on the cylinder unit and keep the engine ready

(13) Ensure that voltage excitation switch is put to off position as a precaution

Initial Starting in of DG set (Erection and commissioning of a Diesel Generator)

Check Engine speeds (idle and rated). Idling speed should be  400-500 RPM and rated speed 750 RPM). Start priming oil pump and prim Engine to lubricate parts sufficiently. Start the engine immediately after the firing.

OBSERVE FOLLOWING during (Installation of Diesel Generator)

Engine lubricating oil pressure. Around 3-3.5 Kg/cm2 and that there is no abnormal noise

(2) Water system LT and HT is registering some pressure on the system, and water circulation is on

(3) Turbocharger lubrication system registers pressure above 1. 0 – 1.1 kg/.sq cm. Inspect oil flow to rocker arm system.

(4) Ensure that all cylinders are firing

(5) After few minutes (2-3 minutes), stop the Engine and feel over the main and crankpin bearing by hand feel for abnormality.

(6) Check oil flow through the piston cooling on all units.

(7) When the inspection is complete and satisfactory Engine can be started and put on at rated RPM.

Second start

Start DG set again this time slowly increase engine RPM to 750 and run at idle speed AND OBSERVE FOLLOWING.

1.Engine lubricating oil pressure. Around 4 – 4.5 Kg/sqcm.

2.    Abnormal noise

Engine lubricating oil pressure. Around 4 – 4.5 Kg/sqcm. and that there is no abnormal noise

(2) Water system LT and HT register pressure on the system between 1-1.5 kg/cm2 minimum.

(3) Lubrication system of the Turbocharger, registers pressure above
1.2 to1.3 kg.cm2.

(4) Oil flow to rocker arm system is proper

(5) Ensure that all cylinders are firing.

(6) Lubricating oil pressure difference is below 1.5Kg/cm2

(7) Fuel oil pressure is around 2KG/cm2

(8) Thoroughly check the Engine and alternator for 5 minutes and stop Engine. (Low lube oil pressure trip (Engine shut down) may be reviewed this time). Next, open the crankcase and feel over the Engine main and crankpin bearing and check the oil flow from piston cooling and satisfy.

(9) Check the important trip setting /Shut down of Dg set in the subsequent start-stop operations

Third start

Prepare DG set for start, switch on excitation switch.

Start DG set and warm for 2-3 minutes to check that the voltage is built up. Adjust voltage in the MV side and set it at 6.6KV.

(2) Prepare electrical system for the loading of the Engine by auxiliary loads

(3) Warm-up Engine for 3-5 minutes and check engine alternator thoroughly before loading. Ensure that all the parameters like HT water temperature, lube oil temperature have reached 60C & 50C, respectively.

Check and satisfy electrical panels MV side for the loading of the DG set. When all the above checks are complete set can be put on load as follow.

Start the generator for step load change after completing the routine test as per HYUNDAI guidance and standard. Then, test the engine at available load at the site.

Compare all the readings and values recorded in the test period with the testbed reports of OEM. If there are no apparent/unexplained deviations, the test can be deemed complete and acceptable.

Records and commissioning reports after Installation of Diesel Generator

Operating manual for Engine.

(2)  P&ID diagram for the fuel, water, oil, waste oil, and starting & instrument air.

(3)  Instruction manual for the alternator.

(4)  Electrical drawings for MV and LV system

(5)  DG set Logbook

(6)  Anti-vibration sandwich measurement sheet

  Auto-Log/ Deflection reading datasheet

Best Marine Engineering Books

Product ImageTitleBuying Option
q? encoding=UTF8&ASIN=B001DLH2U6&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=B001DLH2U6Pounder's Marine Diesel Engines and Gas Turbines
Logo 23
Installation of Diesel Generator|The Best Procedure in 22-23 49
q? encoding=UTF8&ASIN=9351070190&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=9351070190Diesel Generator Handbook
Logo 1
Installation of Diesel Generator|The Best Procedure in 22-23 50
q? encoding=UTF8&ASIN=B00ANP44FY&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=B00ANP44FYReeds Diesel Engine Troubleshooting Handbook
Logo 2
Installation of Diesel Generator|The Best Procedure in 22-23 51
q? encoding=UTF8&ASIN=0070096120&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=0070096120Marine Diesel Engines: Maintenance, Troubleshooting, and Repair
Logo 3
Installation of Diesel Generator|The Best Procedure in 22-23 52
q? encoding=UTF8&ASIN=0070163480&Format= SL160 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li2&o=1&a=0070163480Troubleshooting and Repairing Diesel Engines
Logo 4
Installation of Diesel Generator|The Best Procedure in 22-23 53
q? encoding=UTF8&ASIN=B01D8T1L7U&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=B01D8T1L7UIntroduction to Marine Engineering
Logo 5
Installation of Diesel Generator|The Best Procedure in 22-23 54
q? encoding=UTF8&ASIN=1173808159&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=1173808159How To Become Marine Engineer
Logo 6
Installation of Diesel Generator|The Best Procedure in 22-23 55
q? encoding=UTF8&ASIN=B011T827P2&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=B011T827P2General Engineering Knowledge for Marine Engineers
Logo 7
Installation of Diesel Generator|The Best Procedure in 22-23 56
q? encoding=UTF8&ASIN=1483106357&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=1483106357Marine Auxiliary Machinery
Logo 8
Installation of Diesel Generator|The Best Procedure in 22-23 57
q? encoding=UTF8&ASIN=B001343MUM&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=B001343MUMLamb’s Questions and Answers on the Marine Diesel Engine
Logo 9
Installation of Diesel Generator|The Best Procedure in 22-23 58
q? encoding=UTF8&ASIN=B08PNL266H&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=B08PNL266HPounder’s Marine Diesel Engines and Gas Turbines
Logo 10
Installation of Diesel Generator|The Best Procedure in 22-23 59
q? encoding=UTF8&ASIN=B013PB28C8&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=B013PB28C8Marine Electrical Equipment and Practice
Logo 11
Installation of Diesel Generator|The Best Procedure in 22-23 60
q? encoding=UTF8&ASIN=1905331800&Format= SL250 &ID=AsinImage&MarketPlace=US&ServiceVersion=20070822&WS=1&tag=marinediese09 20&language=en USir?t=marinediese09 20&language=en US&l=li3&o=1&a=1905331800A Pocket Book of Marine Engineering: Questions and Answers
Logo 12
Installation of Diesel Generator|The Best Procedure in 22-23 61

Blog Conclusion

We hope you enjoyed our blog post about how to install a diesel generator. We know that many people find it difficult to figure out how to install a diesel generator, but that’s no problem! We have provided some helpful information that will make it easy for you to install it yourself and save you a lot of time and money in the process. Check out our blog post for more information about how to install a diesel generator. This blog post is also great for those who are considering installing a diesel generator for their business establishment. Thank you for reading, we are always excited when one of our posts is able to provide informative information like this!

Hi, I’m Sham, Founder of marinediesel.co.in. A web site that provides authentic information regarding Marine Diesel Engines, and learn marine Engineering free with us
